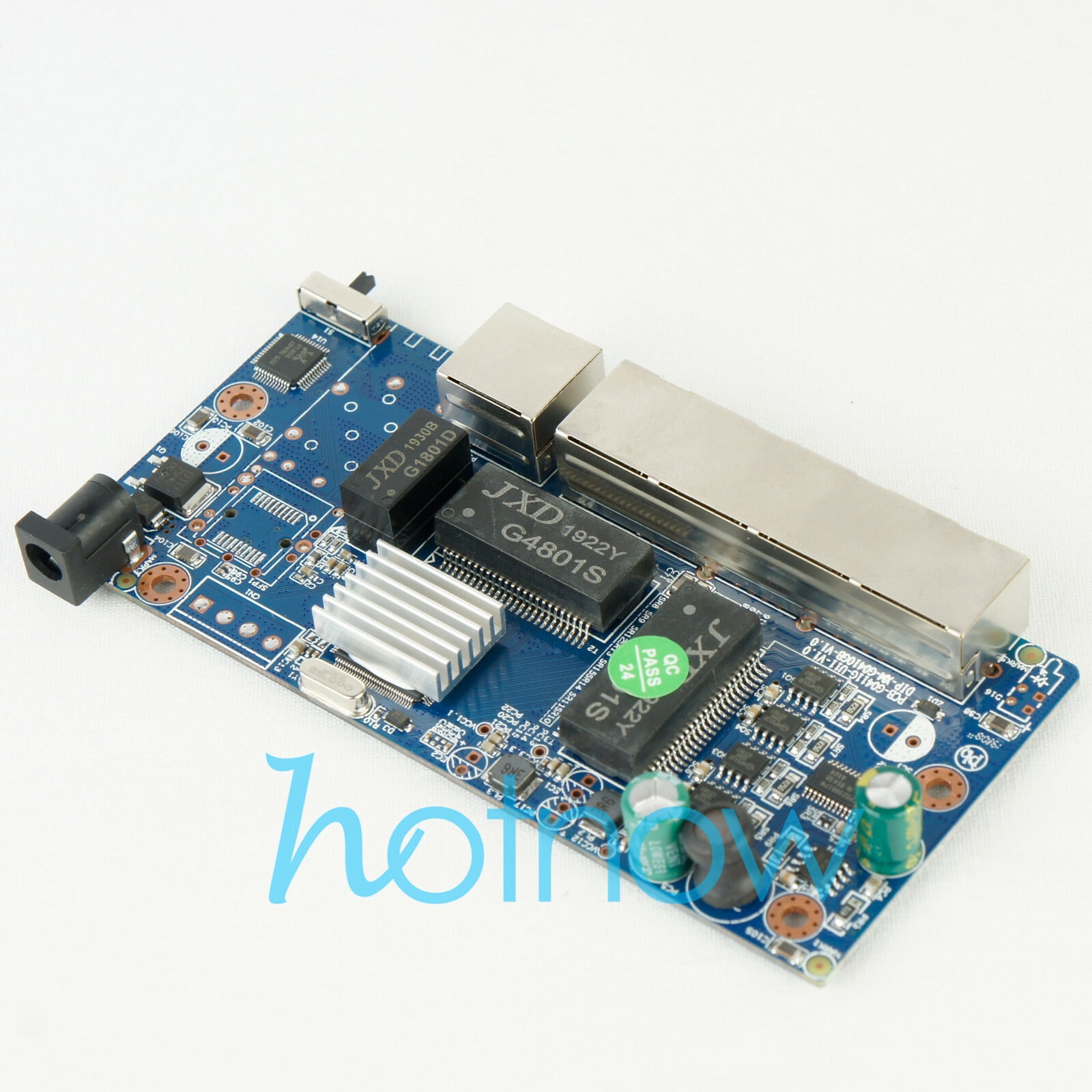

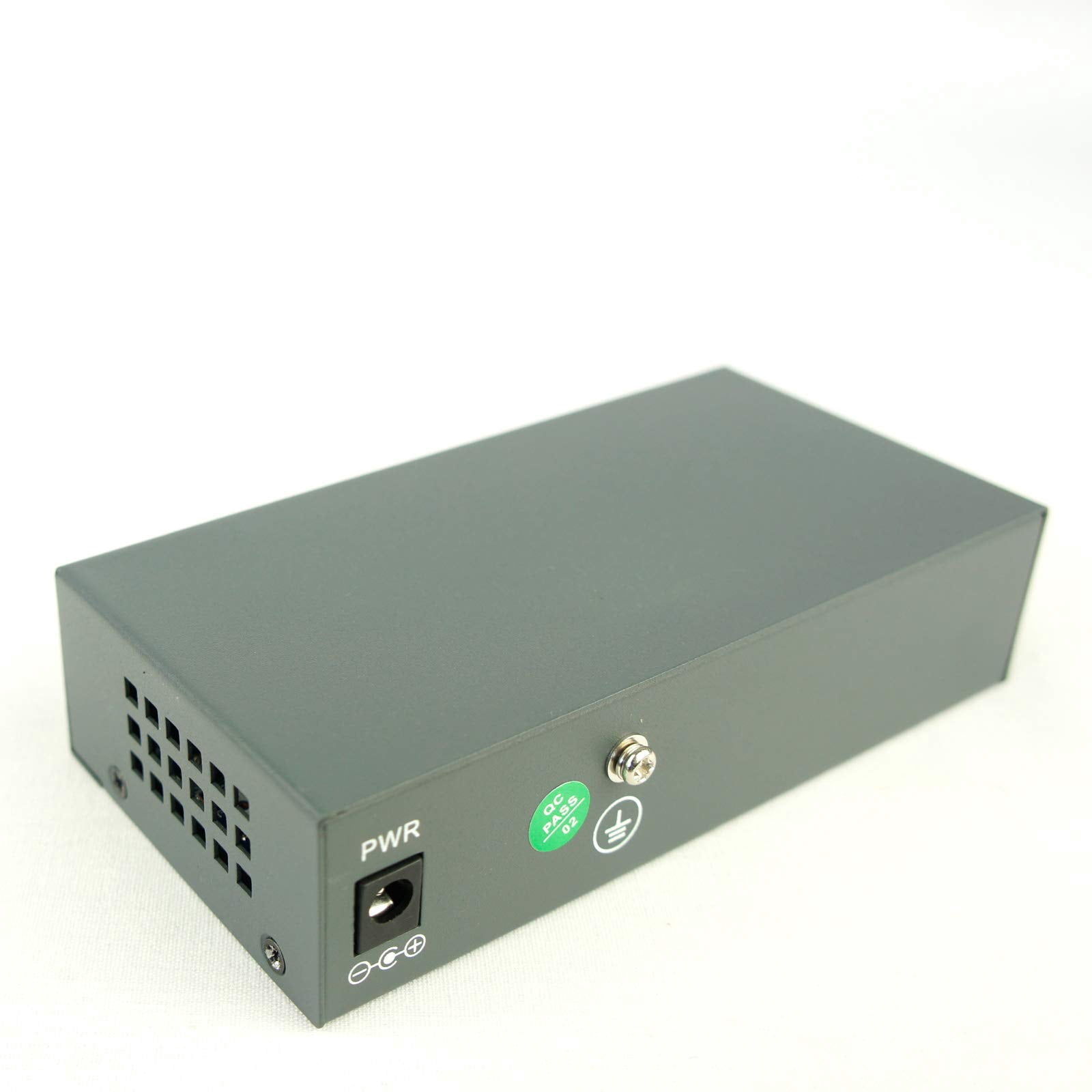

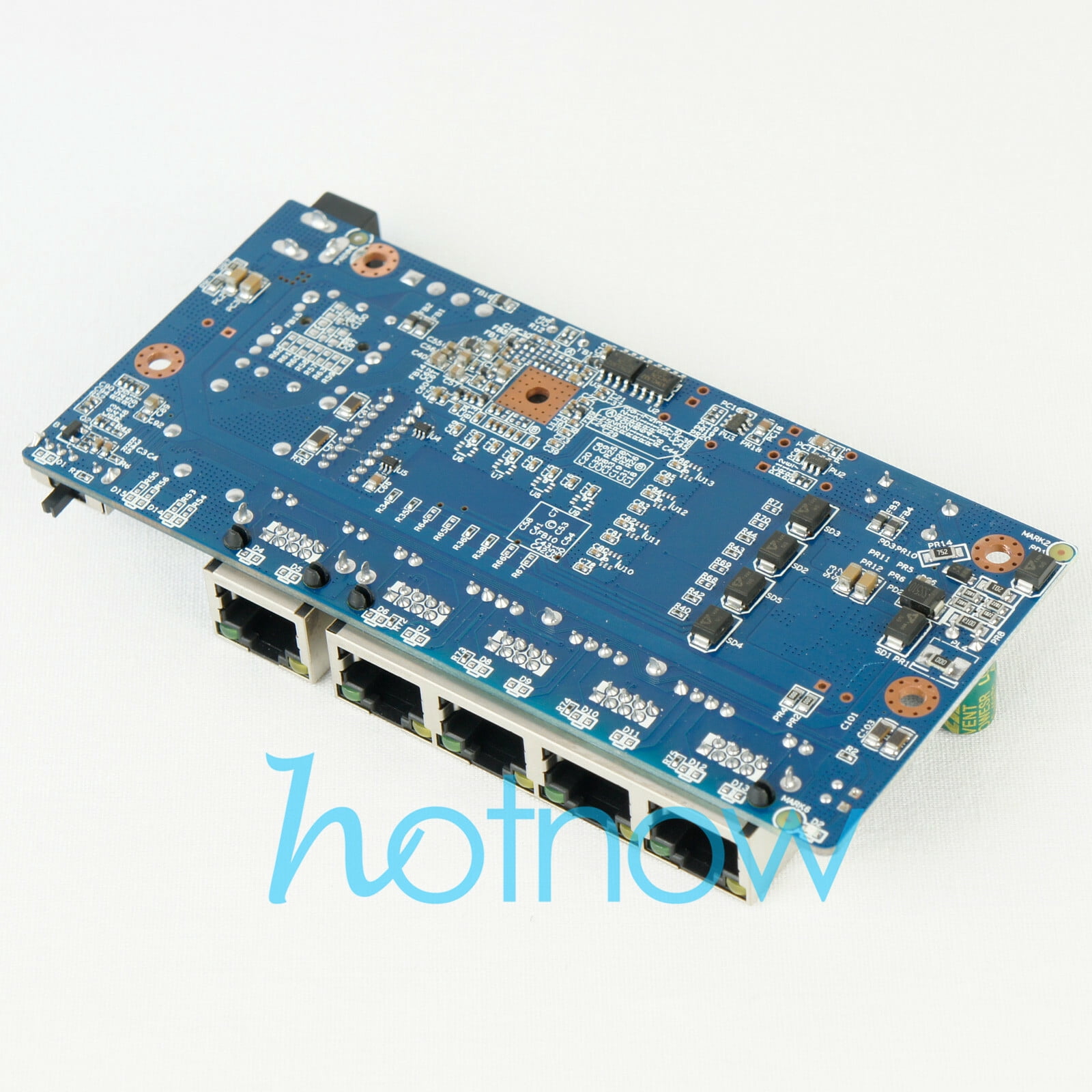

DSLRKIT ALL Gigabit 5 Ports 4 PoE+ Switch 802.3at Power Over Ethernet NO PSU

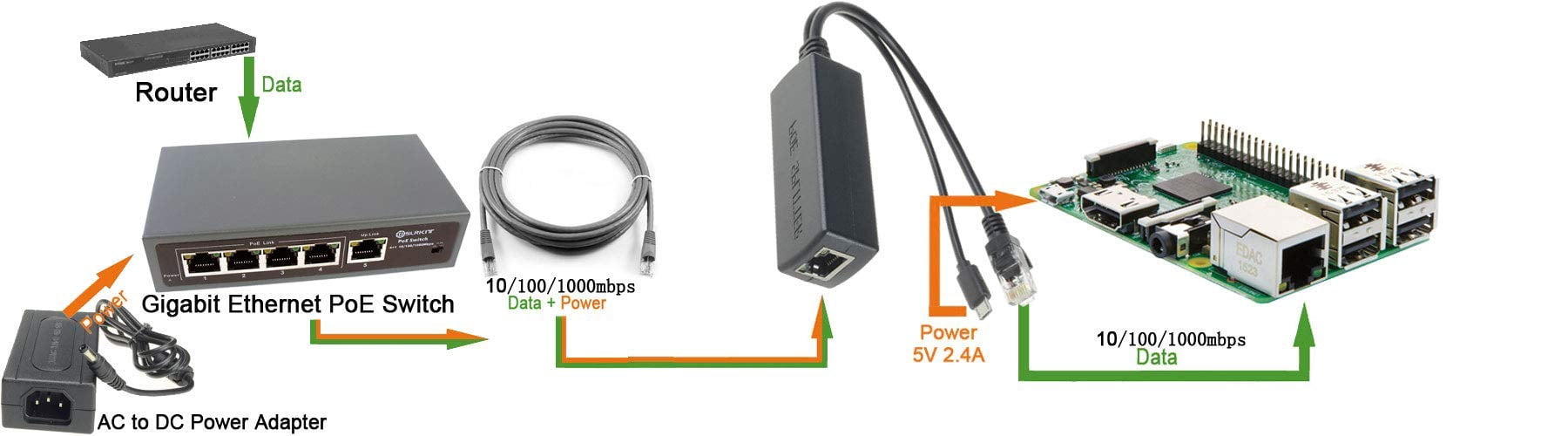

DSLRKIT&nbsp;PSE4P1UGK Gigabit&nbsp;PoE+ Switch<br>&nbsp;&nbsp;<br>5 Ports (1Uplink,&nbsp;4 PoE)10/100/1000Mbps<br>IEEE 802.3af/802.3at Endspan PSE(1,2+/3,6-)<br>Auto Detection Powered Device<br><br>Input DC48V~57V power supply<br> (Power supply not included)&nbsp;<br>Wall Mount<br>&nbsp;<br>It is easy to connect. With data and power over Ethernet from one unit, the PoE Switch reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire carries both data and power lowering the installation costs, simplifying the installation effort and eliminating the need for electricians or extension cords. Providing 4 PoE interfaces, the Switch is ideal for small businesses and workgroups requiring to deploy the PoE for the wireless access points, IP-based surveillance camera or IP phones in any places easily, efficiently and cost-effectively.<br>Compatible all 802.3af/802.3at device as Wireless Access Point, IP Phone, IP camera, Gateway , Switch, or More.....<br>Automatic detection of PoE power devices, non-PoE devices can be securely connected to the switch any network port<br><br>Features:<br> Supports Virtual LAN(VLAN) ON/OFF<br>(When the VLAN mode is enabled, all PoE ports support VLAN isolation, the traffic are isolated from each other, improve the network safety.)<br><br>Up to 30w/port of Power on<br>Complies to IEEE 802.3af/802.3at PoE standard<br>Compatible with All IEEE 802.3af/802.3at<br>Safe: Low power Devices Receive Only the Power They Need<br>Safe and Reliable Power to WLAN Access Points<br>Automatic detection of PoE power devices, non-PoE devices can be securely connected to the switch any network port<br>Supports 10/100/1000 Base-T<br>Compact Design Fits Easily in WLAN Access<br>Plug-and-Play no configuration required<br>Each port supports auto MDI/MDIX<br>Specification:<br>ALL LAN/WAN Port:<br>Standard 1000Mbps Ethernet port. &nbsp;can operate in full-duplex or half-duplex mode,must work with 4 pairs UTP Cat5e/6 cable。<br>LAN Port 1-4:&nbsp;<br>any supported IEEE802.3af PoE Powered Device and Automatic Detection and Protection None PoE Powered Devices (PDs)<br>Virtual LAN:<br><br>&nbsp;ON/OFF<br>LED<br>Power (Red)<br>PoE In-Use and1000 LNK / ACT(Orange LAN Port)<br>10/100 LNK / ACT(Green)<br>Product Dimensions<br>132mm&nbsp;W x 66mm D x 32mm&nbsp;H<br>Weight<br>270g(only switch)<br>Power Requirement<br>5.5x2.1&nbsp;Jack&nbsp;Input Voltage 48~57V&nbsp;DC<br>PoE Standard<br>IEEE 802.3af, IEEE802.3at<br>PoE Power Output<br>48V-57VDC, Max. 30Watt/port<br>PoE Power Supply Type<br>pin 1 &amp; pin 2 (Power +) ; pin 3 &amp; pin 6 (Power -), Mode-A, Endspan<br>Regulation Compliance<br>FCC Part 15 Class A, CE<br>Operating<br>Temperature: 0~50 Degree C, Relative Humidity: 20~95%<br>Storage<br>Temperature: -10~70 Degree C, Relative Humidity: 20~95%(non-condesing)<br>Standards Compliance<br>IEEE 802.3: 10Base-T<br>IEEE 802.3u: 100Base-Tx<br>IEEE 802.3z: 1000Base-Tx<br><br>IEEE 802.3x: Flow Control<br>Item Included:<br>&nbsp;DSLRKIT PSE4P1UGK&nbsp;PoE switch x1(with Retail Box)<br>&nbsp;<br>(Power supply not included)<br>12 Months Warranty from the date of purchase.

•  Supports Virtual LAN(VLAN) ON/OFF
• Complies to IEEE 802.3af/802.3at PoE standard
• Safe: Low power Devices Receive Only the Power They Need
  Safe and Reliable Power to WLAN Access Points
• Standards Compliance
  IEEE 802.3: 10Base-T
  IEEE 802.3u: 100Base-Tx
  IEEE 802.3z: 1000Base-Tx
